音频重采样¶
本教程展示了如何使用 torchaudio 的重采样 API。
import torch
import torchaudio
import torchaudio.functional as F
import torchaudio.transforms as T
print(torch.__version__)
print(torchaudio.__version__)
2.8.0+cu126
2.8.0
准备¶
首先，我们导入模块并定义辅助函数。
import math
import timeit
import librosa
import matplotlib.colors as mcolors
import matplotlib.pyplot as plt
import pandas as pd
import resampy
from IPython.display import Audio
pd.set_option("display.max_rows", None)
pd.set_option("display.max_columns", None)
DEFAULT_OFFSET = 201
def _get_log_freq(sample_rate, max_sweep_rate, offset):
"""Get freqs evenly spaced out in log-scale, between [0, max_sweep_rate // 2]
offset is used to avoid negative infinity `log(offset + x)`.
"""
start, stop = math.log(offset), math.log(offset + max_sweep_rate // 2)
return torch.exp(torch.linspace(start, stop, sample_rate, dtype=torch.double)) - offset
def _get_inverse_log_freq(freq, sample_rate, offset):
"""Find the time where the given frequency is given by _get_log_freq"""
half = sample_rate // 2
return sample_rate * (math.log(1 + freq / offset) / math.log(1 + half / offset))
def _get_freq_ticks(sample_rate, offset, f_max):
# Given the original sample rate used for generating the sweep,
# find the x-axis value where the log-scale major frequency values fall in
times, freq = [], []
for exp in range(2, 5):
for v in range(1, 10):
f = v * 10**exp
if f < sample_rate // 2:
t = _get_inverse_log_freq(f, sample_rate, offset) / sample_rate
times.append(t)
freq.append(f)
t_max = _get_inverse_log_freq(f_max, sample_rate, offset) / sample_rate
times.append(t_max)
freq.append(f_max)
return times, freq
def get_sine_sweep(sample_rate, offset=DEFAULT_OFFSET):
max_sweep_rate = sample_rate
freq = _get_log_freq(sample_rate, max_sweep_rate, offset)
delta = 2 * math.pi * freq / sample_rate
cummulative = torch.cumsum(delta, dim=0)
signal = torch.sin(cummulative).unsqueeze(dim=0)
return signal
def plot_sweep(
waveform,
sample_rate,
title,
max_sweep_rate=48000,
offset=DEFAULT_OFFSET,
):
x_ticks = [100, 500, 1000, 5000, 10000, 20000, max_sweep_rate // 2]
y_ticks = [1000, 5000, 10000, 20000, sample_rate // 2]
time, freq = _get_freq_ticks(max_sweep_rate, offset, sample_rate // 2)
freq_x = [f if f in x_ticks and f <= max_sweep_rate // 2 else None for f in freq]
freq_y = [f for f in freq if f in y_ticks and 1000 <= f <= sample_rate // 2]
figure, axis = plt.subplots(1, 1)
_, _, _, cax = axis.specgram(waveform[0].numpy(), Fs=sample_rate)
plt.xticks(time, freq_x)
plt.yticks(freq_y, freq_y)
axis.set_xlabel("Original Signal Frequency (Hz, log scale)")
axis.set_ylabel("Waveform Frequency (Hz)")
axis.xaxis.grid(True, alpha=0.67)
axis.yaxis.grid(True, alpha=0.67)
figure.suptitle(f"{title} (sample rate: {sample_rate} Hz)")
plt.colorbar(cax)
重采样概述¶
要将音频波形从一个频率重采样到另一个频率，可以使用torchaudio.transforms.Resample或torchaudio.functional.resample()。transforms.Resample预先计算并缓存用于重采样的内核，而functional.resample则即时计算，因此当使用相同参数重采样多个波形时，使用torchaudio.transforms.Resample会加快速度（参见基准测试部分）。
两种重采样方法都使用带限Sinc插值来计算任意时间步长的信号值。该实现涉及卷积，因此我们可以利用GPU/多线程来提高性能。
注意
当在多个子进程（例如使用多个工作进程进行数据加载）中使用重采样时，您的应用程序可能会创建比系统能有效处理的更多线程。在这种情况下，设置torch.set_num_threads(1)可能会有所帮助。
由于有限数量的样本只能表示有限数量的频率，重采样不会产生完美的结果，并且可以使用各种参数来控制其质量和计算速度。我们通过重采样对数正弦扫描（一种频率随时间呈指数增长的正弦波）来演示这些属性。

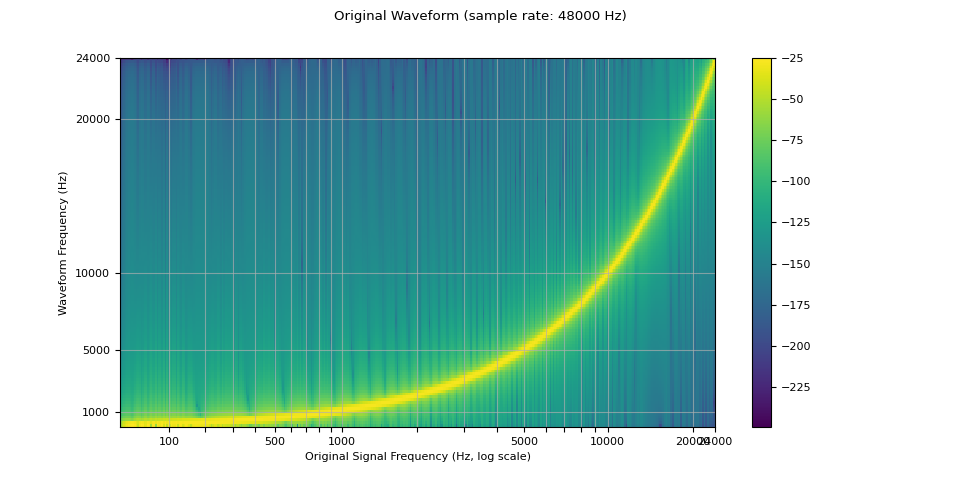

下面的频谱图显示了信号的频率表示，其中x轴对应于原始波形的频率（对数刻度），y轴对应于绘制波形的频率，颜色强度对应于振幅。
sample_rate = 48000
waveform = get_sine_sweep(sample_rate)
plot_sweep(waveform, sample_rate, title="Original Waveform")
Audio(waveform.numpy()[0], rate=sample_rate)
现在我们对其进行重采样（下采样）。
我们看到，在重采样波形的频谱图中，有一个原始波形中不存在的伪影。这种效应称为混叠。此页面解释了它是如何发生的，以及为什么它看起来像反射。
resample_rate = 32000
resampler = T.Resample(sample_rate, resample_rate, dtype=waveform.dtype)
resampled_waveform = resampler(waveform)
plot_sweep(resampled_waveform, resample_rate, title="Resampled Waveform")
Audio(resampled_waveform.numpy()[0], rate=resample_rate)
使用参数控制重采样质量¶
低通滤波器宽度¶
因为用于插值的滤波器是无限延伸的，所以lowpass_filter_width参数用于控制用于窗口插值的滤波器宽度。它也被称为零交叉的数量，因为插值在每个时间单位都通过零。使用更大的lowpass_filter_width提供更清晰、更精确的滤波器，但计算成本更高。
sample_rate = 48000
resample_rate = 32000
resampled_waveform = F.resample(waveform, sample_rate, resample_rate, lowpass_filter_width=6)

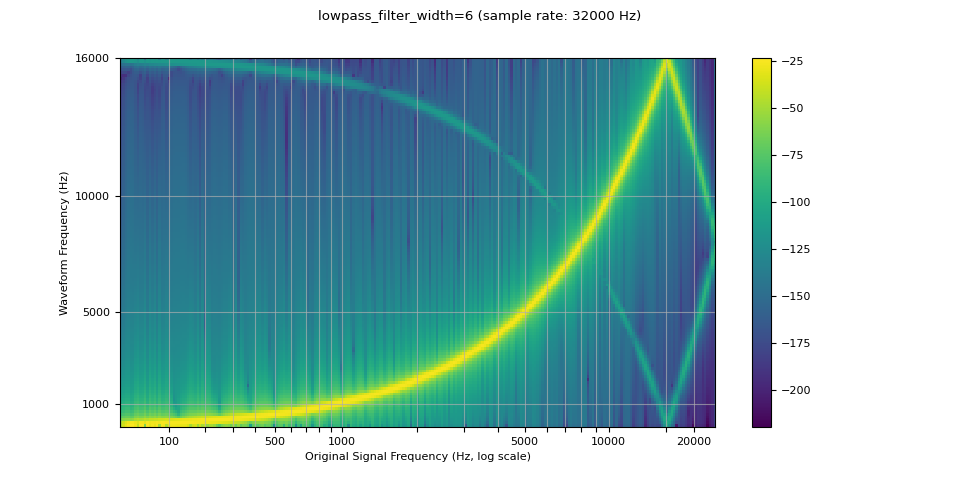

plot_sweep(resampled_waveform, resample_rate, title="lowpass_filter_width=6")
resampled_waveform = F.resample(waveform, sample_rate, resample_rate, lowpass_filter_width=128)
plot_sweep(resampled_waveform, resample_rate, title="lowpass_filter_width=128")
滚降¶
rolloff参数表示为奈奎斯特频率的一部分，奈奎斯特频率是给定有限采样率可表示的最大频率。rolloff决定低通滤波器截止并控制混叠程度，当频率高于奈奎斯特频率时，混叠会将它们映射到较低频率。因此，较低的滚降将减少混叠量，但也会减少一些较高频率。
sample_rate = 48000
resample_rate = 32000
resampled_waveform = F.resample(waveform, sample_rate, resample_rate, rolloff=0.99)
plot_sweep(resampled_waveform, resample_rate, title="rolloff=0.99")
resampled_waveform = F.resample(waveform, sample_rate, resample_rate, rolloff=0.8)
plot_sweep(resampled_waveform, resample_rate, title="rolloff=0.8")
窗函数¶
默认情况下，torchaudio的重采样使用汉宁窗滤波器，这是一种加权余弦函数。它还支持凯撒窗，这是一种近似最优的窗函数，其中包含一个额外的beta参数，允许设计滤波器的平滑度和脉冲宽度。这可以通过resampling_method参数进行控制。
sample_rate = 48000
resample_rate = 32000
resampled_waveform = F.resample(waveform, sample_rate, resample_rate, resampling_method="sinc_interp_hann")
plot_sweep(resampled_waveform, resample_rate, title="Hann Window Default")
resampled_waveform = F.resample(waveform, sample_rate, resample_rate, resampling_method="sinc_interp_kaiser")
plot_sweep(resampled_waveform, resample_rate, title="Kaiser Window Default")
与librosa的比较¶
torchaudio的重采样函数可以产生与librosa（resampy）的kaiser窗重采样类似的结果，但带有一些噪声
sample_rate = 48000
resample_rate = 32000
kaiser_best¶
resampled_waveform = F.resample(
waveform,
sample_rate,
resample_rate,
lowpass_filter_width=64,
rolloff=0.9475937167399596,
resampling_method="sinc_interp_kaiser",
beta=14.769656459379492,
)

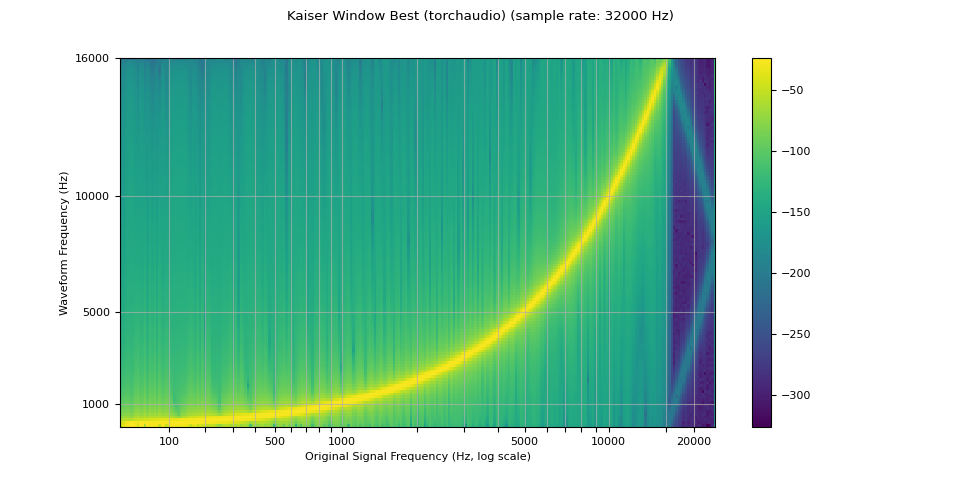

plot_sweep(resampled_waveform, resample_rate, title="Kaiser Window Best (torchaudio)")
librosa_resampled_waveform = torch.from_numpy(
librosa.resample(waveform.squeeze().numpy(), orig_sr=sample_rate, target_sr=resample_rate, res_type="kaiser_best")
).unsqueeze(0)
plot_sweep(librosa_resampled_waveform, resample_rate, title="Kaiser Window Best (librosa)")
mse = torch.square(resampled_waveform - librosa_resampled_waveform).mean().item()
print("torchaudio and librosa kaiser best MSE:", mse)
torchaudio and librosa kaiser best MSE: 2.0806901153660115e-06
kaiser_fast¶
resampled_waveform = F.resample(
waveform,
sample_rate,
resample_rate,
lowpass_filter_width=16,
rolloff=0.85,
resampling_method="sinc_interp_kaiser",
beta=8.555504641634386,
)

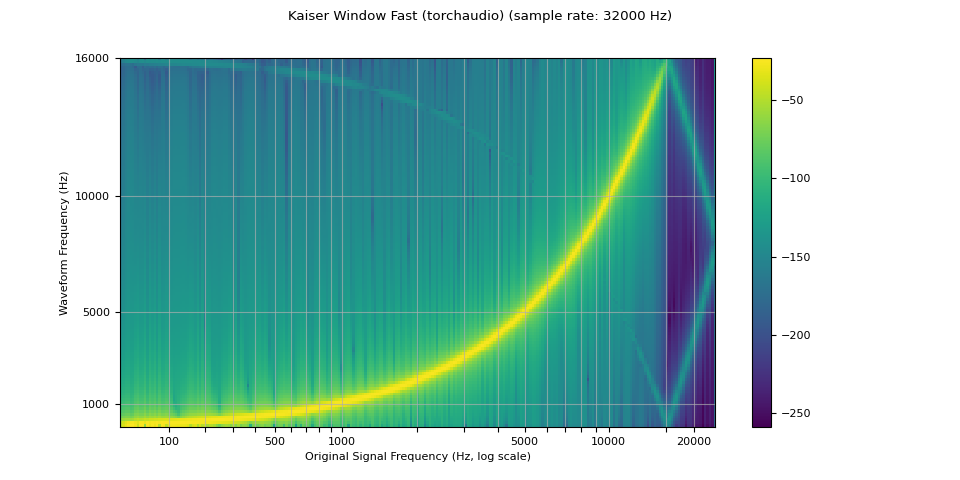

plot_sweep(resampled_waveform, resample_rate, title="Kaiser Window Fast (torchaudio)")
librosa_resampled_waveform = torch.from_numpy(
librosa.resample(waveform.squeeze().numpy(), orig_sr=sample_rate, target_sr=resample_rate, res_type="kaiser_fast")
).unsqueeze(0)

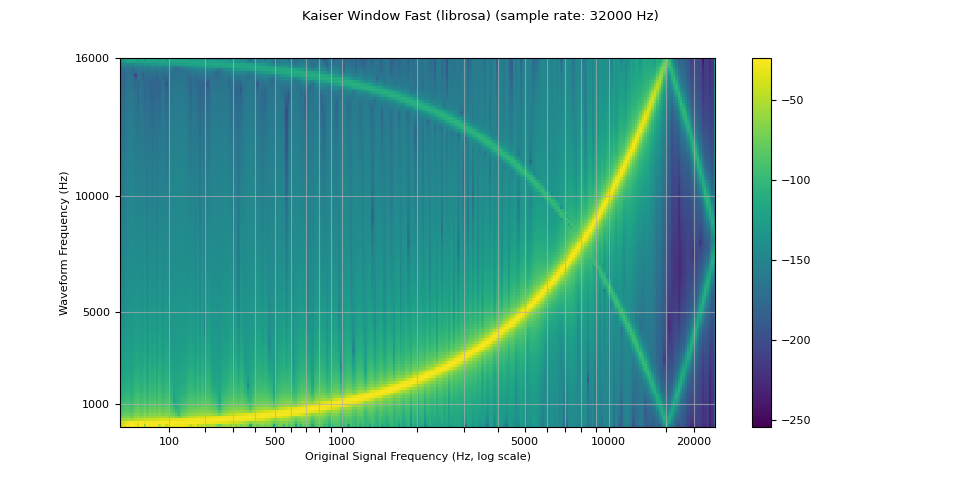

plot_sweep(librosa_resampled_waveform, resample_rate, title="Kaiser Window Fast (librosa)")
mse = torch.square(resampled_waveform - librosa_resampled_waveform).mean().item()
print("torchaudio and librosa kaiser fast MSE:", mse)
torchaudio and librosa kaiser fast MSE: 2.5200744248601437e-05
性能基准测试¶
下面是两对采样率之间波形下采样和上采样的基准测试。我们展示了lowpass_filter_width、窗口类型和采样率可能对性能产生的影响。此外，我们还提供了与librosa的kaiser_best和kaiser_fast的比较，使用了它们在torchaudio中对应的参数。
print(f"torchaudio: {torchaudio.__version__}")
print(f"librosa: {librosa.__version__}")
print(f"resampy: {resampy.__version__}")
torchaudio: 2.8.0
librosa: 0.10.0
resampy: 0.2.2
def benchmark_resample_functional(
waveform,
sample_rate,
resample_rate,
lowpass_filter_width=6,
rolloff=0.99,
resampling_method="sinc_interp_hann",
beta=None,
iters=5,
):
return (
timeit.timeit(
stmt="""
torchaudio.functional.resample(
waveform,
sample_rate,
resample_rate,
lowpass_filter_width=lowpass_filter_width,
rolloff=rolloff,
resampling_method=resampling_method,
beta=beta,
)
""",
setup="import torchaudio",
number=iters,
globals=locals(),
)
* 1000
/ iters
)
def benchmark_resample_transforms(
waveform,
sample_rate,
resample_rate,
lowpass_filter_width=6,
rolloff=0.99,
resampling_method="sinc_interp_hann",
beta=None,
iters=5,
):
return (
timeit.timeit(
stmt="resampler(waveform)",
setup="""
import torchaudio
resampler = torchaudio.transforms.Resample(
sample_rate,
resample_rate,
lowpass_filter_width=lowpass_filter_width,
rolloff=rolloff,
resampling_method=resampling_method,
dtype=waveform.dtype,
beta=beta,
)
resampler.to(waveform.device)
""",
number=iters,
globals=locals(),
)
* 1000
/ iters
)
def benchmark_resample_librosa(
waveform,
sample_rate,
resample_rate,
res_type=None,
iters=5,
):
waveform_np = waveform.squeeze().numpy()
return (
timeit.timeit(
stmt="""
librosa.resample(
waveform_np,
orig_sr=sample_rate,
target_sr=resample_rate,
res_type=res_type,
)
""",
setup="import librosa",
number=iters,
globals=locals(),
)
* 1000
/ iters
)
def benchmark(sample_rate, resample_rate):
times, rows = [], []
waveform = get_sine_sweep(sample_rate).to(torch.float32)
args = (waveform, sample_rate, resample_rate)
# sinc 64 zero-crossings
f_time = benchmark_resample_functional(*args, lowpass_filter_width=64)
t_time = benchmark_resample_transforms(*args, lowpass_filter_width=64)
times.append([None, f_time, t_time])
rows.append("sinc (width 64)")
# sinc 6 zero-crossings
f_time = benchmark_resample_functional(*args, lowpass_filter_width=16)
t_time = benchmark_resample_transforms(*args, lowpass_filter_width=16)
times.append([None, f_time, t_time])
rows.append("sinc (width 16)")
# kaiser best
kwargs = {
"lowpass_filter_width": 64,
"rolloff": 0.9475937167399596,
"resampling_method": "sinc_interp_kaiser",
"beta": 14.769656459379492,
}
lib_time = benchmark_resample_librosa(*args, res_type="kaiser_best")
f_time = benchmark_resample_functional(*args, **kwargs)
t_time = benchmark_resample_transforms(*args, **kwargs)
times.append([lib_time, f_time, t_time])
rows.append("kaiser_best")
# kaiser fast
kwargs = {
"lowpass_filter_width": 16,
"rolloff": 0.85,
"resampling_method": "sinc_interp_kaiser",
"beta": 8.555504641634386,
}
lib_time = benchmark_resample_librosa(*args, res_type="kaiser_fast")
f_time = benchmark_resample_functional(*args, **kwargs)
t_time = benchmark_resample_transforms(*args, **kwargs)
times.append([lib_time, f_time, t_time])
rows.append("kaiser_fast")
df = pd.DataFrame(times, columns=["librosa", "functional", "transforms"], index=rows)
return df
def plot(df):
print(df.round(2))
ax = df.plot(kind="bar")
plt.ylabel("Time Elapsed [ms]")
plt.xticks(rotation=0, fontsize=10)
for cont, col, color in zip(ax.containers, df.columns, mcolors.TABLEAU_COLORS):
label = ["N/A" if v != v else str(v) for v in df[col].round(2)]
ax.bar_label(cont, labels=label, color=color, fontweight="bold", fontsize="x-small")

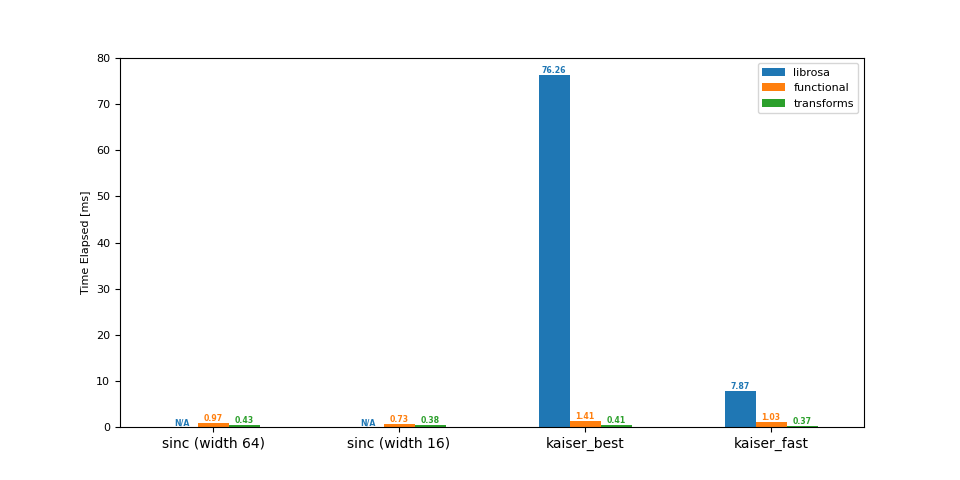

下采样 (48 -> 44.1 kHz)¶
df = benchmark(48_000, 44_100)
plot(df)
librosa functional transforms
sinc (width 64) NaN 0.97 0.43
sinc (width 16) NaN 0.73 0.38
kaiser_best 76.26 1.41 0.41
kaiser_fast 7.87 1.03 0.37

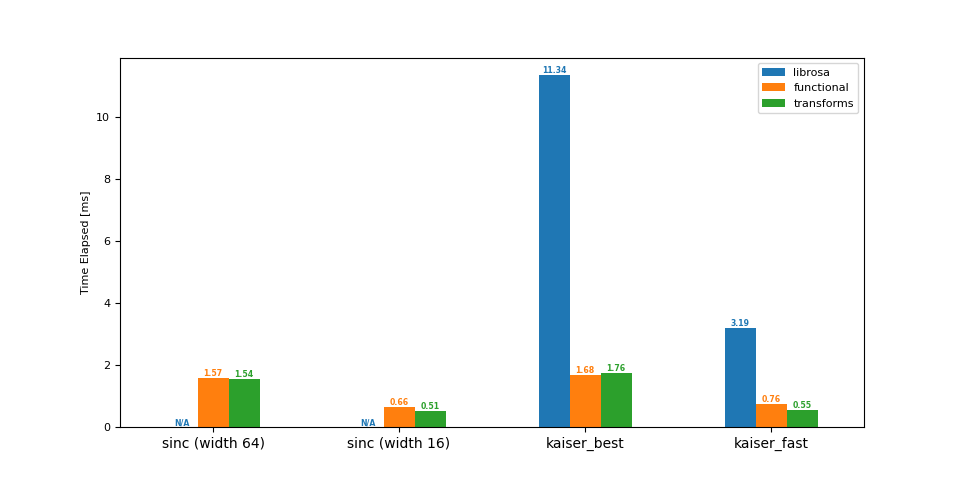

下采样 (16 -> 8 kHz)¶
df = benchmark(16_000, 8_000)
plot(df)
librosa functional transforms
sinc (width 64) NaN 1.57 1.54
sinc (width 16) NaN 0.66 0.51
kaiser_best 11.34 1.68 1.76
kaiser_fast 3.19 0.76 0.55

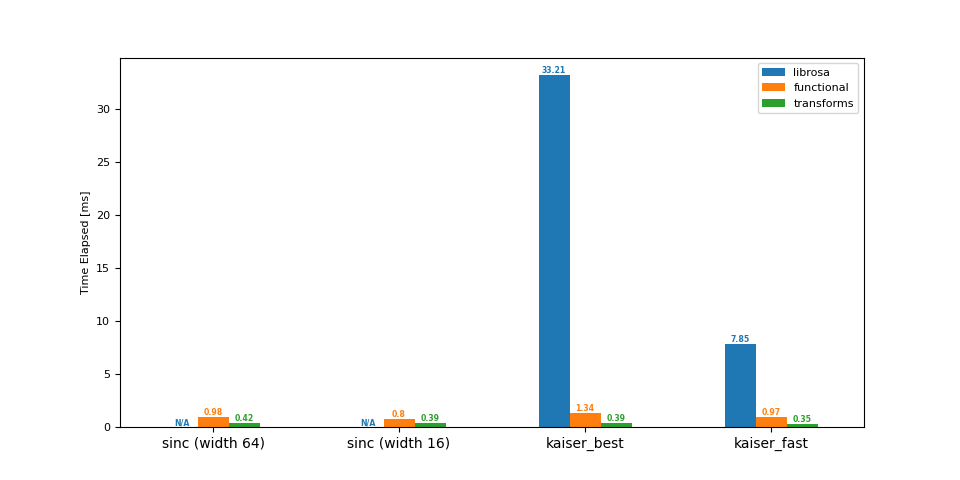

上采样 (44.1 -> 48 kHz)¶
df = benchmark(44_100, 48_000)
plot(df)
librosa functional transforms
sinc (width 64) NaN 0.98 0.42
sinc (width 16) NaN 0.80 0.39
kaiser_best 33.21 1.34 0.39
kaiser_fast 7.85 0.97 0.35

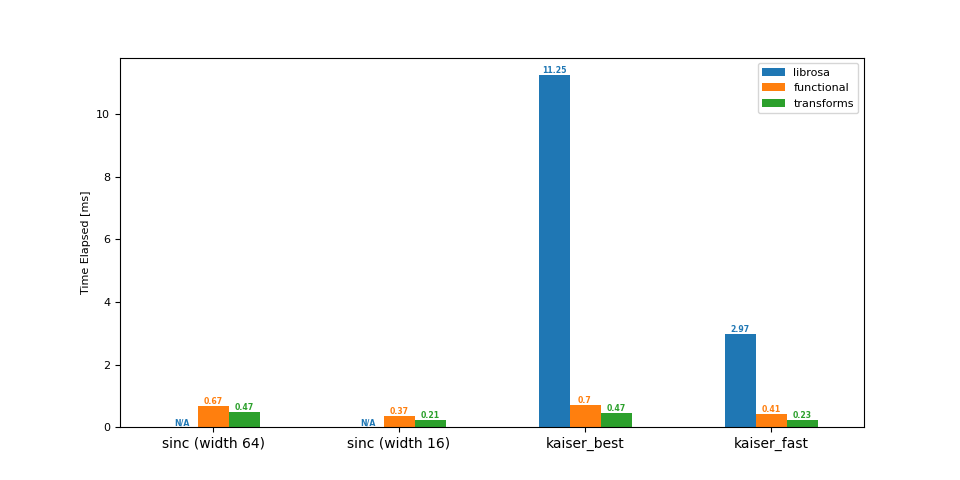

上采样 (8 -> 16 kHz)¶
df = benchmark(8_000, 16_000)
plot(df)
librosa functional transforms
sinc (width 64) NaN 0.67 0.47
sinc (width 16) NaN 0.37 0.21
kaiser_best 11.25 0.70 0.47
kaiser_fast 2.97 0.41 0.23
总结¶
详细说明结果
较大的
lowpass_filter_width会导致较大的重采样核，从而增加核计算和卷积的计算时间使用
sinc_interp_kaiser的计算时间比默认的sinc_interp_hann长，因为它计算中间窗口值更复杂采样率和重采样率之间较大的最大公约数（GCD）将导致简化，从而允许使用较小的核和更快的核计算。
脚本总运行时间： (0 分钟 3.294 秒)
